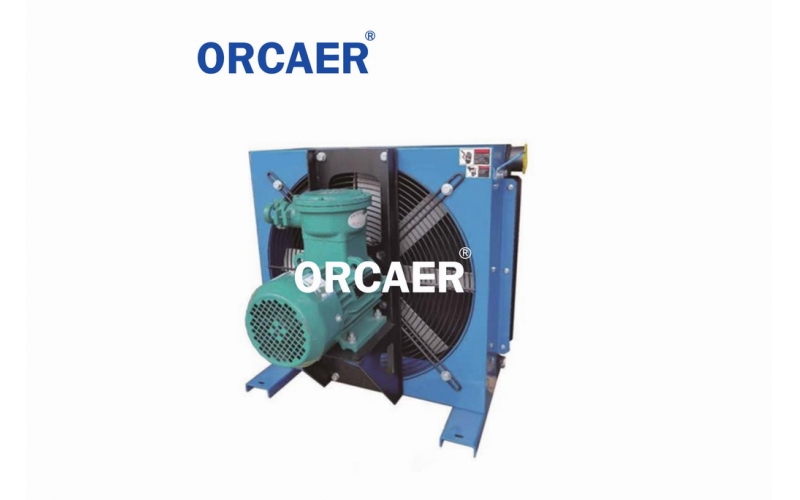

Explosion Proof Oil Cooler,Heat exchanger,explosion-proof motor drive hydraulic oil cooler,Explosive power oil cooler
Application :
Explosion Proof Oil Cooler are widely used in Vessel equipment.wind power equipment,extracting equipment in mines,
working in severe environments whose protection class is above IP55,which are outdoor,explosion proof,water proof,dirt proof,
oil cooler Application in all kinds of hydraulic station, sawing machine, concrete mixer truck, engineering machinery, wind power
equipment, concrete pump, cutting machine, woodworking sawing machine, packing machine, plastic machinery,metallurgical machinery,
shipbuilding and other fields, for the equipment of the hydraulic system and lubrication system to reduce fluid hydraulic oil temperature,
provide solution for the normal operation of equipment stability.
Features:
Can achieve explosion proof standard requirements
Of high-quality metal plate structure completely through numerical
Flow Rate:10-1000 L/min
Technical Specifications:
Bypass Options:None/YES
Switch Option:160
Motor Type:Explosion Proof, Division 1, Class 1, Group D; Class II Group F & G, T3C
Size:ULAC-200K
Maximum Cooling Capacity:406 HP, 303 kW
Motor Type:3
Frequency:60 Hz
Input Voltage:208-230/460 VAC,AC110V/AC220/AC460V 3PHASE
Port Size:Code 61 SAE 2″ Flange inch
Connection Thread Size:N/A
Specifications Met:UL, CSA and CE Available on Motor
Maximum Operating Pressure:300 psi, 20.7 bar
Maximum Fluid Temperature:250 °F, 121 °C
For Fluid Type:Mineral Oil, Oil/Water Emulsion, Water Glycol, Phosphate Ester
Materials of Construction:Cooler Core: Aluminum
Fan Blades/Hub: Glass Fiber Reinforced Polypropylene/Aluminum
Fan Housing: Steel
Fan Guard: Steel
Surface Treatment: Electrostatically Powder-Coated
Motor Power Output Rating:15.0 HP
Noise Level:93 dBA
