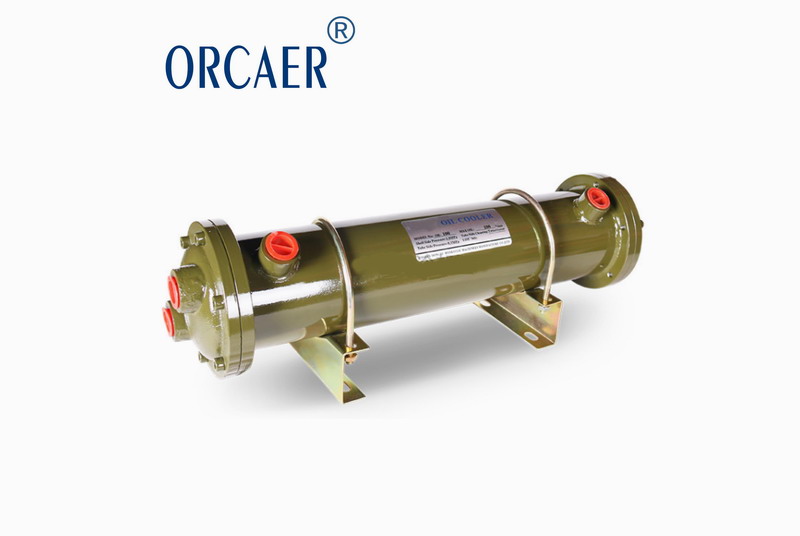

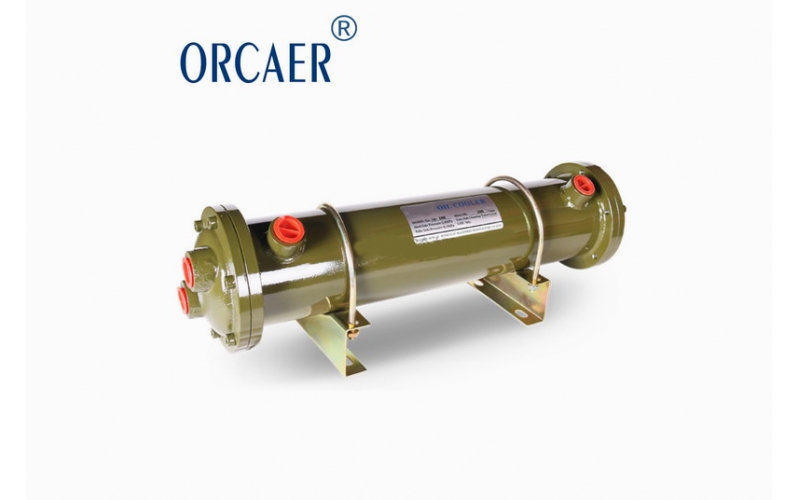

OR-1200 Oil cooler

OR-1200 Oil Cooler,OR-1200L water cooled heat exchanger,shell and tube cooler,Or Series Oil Cooler,Or Type Oil cooler,OR oil cooler:OR-60L, OR-100L, OR-150L,OR-250L.OR-350L,OR-600L,OR-800L,OR-1000L, O

OR-1200 Oil Cooler,OR-1200L water cooled heat exchanger,shell and tube cooler,Or Series Oil Cooler,Or Type Oil cooler,

OR oil cooler:OR-60L, OR-100L, OR-150L,OR-250L.OR-350L,OR-600L,OR-800L,OR-1000L,

OR-1200 Oil cooler/heat exchanger Features:

1)Usually used for cooling.

2)Pure titanium tube has super strong corrosion proof ability and high intensity.

3) The seamless titanium tube was tested by 2.0MPa pressure precise Halogen Leak Detection to make sure the tube is strong and not leakage .

4)The cooler shell was tested by 0.5Mpa water pressure to make sure the water system not leakage .

OR-1200 Oil cooler Application:

Shell and tube heat exchanger are widely used for cooling and heating in certain fields of special industries, such as acid tank plating, aluminum oxidation, petrochemical industry, light industry, metallurgy, electric power, shipbuilding and marine environment etc.

OR OIL COOLER CATALOGUE

Model	A	B	C	D	E	F	G	Radiating pipe	Cooling area (m2)	Capacity of tank	Weight (kg)	Flow of pump (L/min)	Water flow (L/min)
OR-60	465	295	40	89.1	120	¾	¾	22	0.24	60	8	100	50
OR-100	540	370	55	114.3	140	¾	¾	26	0.35	100	12	200	100
OR-150	580	375	65	139.8	170	1¼	¾	42	0.6	150	15	300	150
OR-250	800	600	65	139.8	170	1¼	¾	58	1.2	250	22	300	150
OR-350	1205	1000	65	139.8	170	1¼	¾	58	1.9	350	30	300	150
OR-600	1225	970	85	165.2	196	2	1½	58	1.9	600	40	400	200
OR-800	1725	1470	85	165.2	196	2	1½	58	2.8	800	50	400	200
