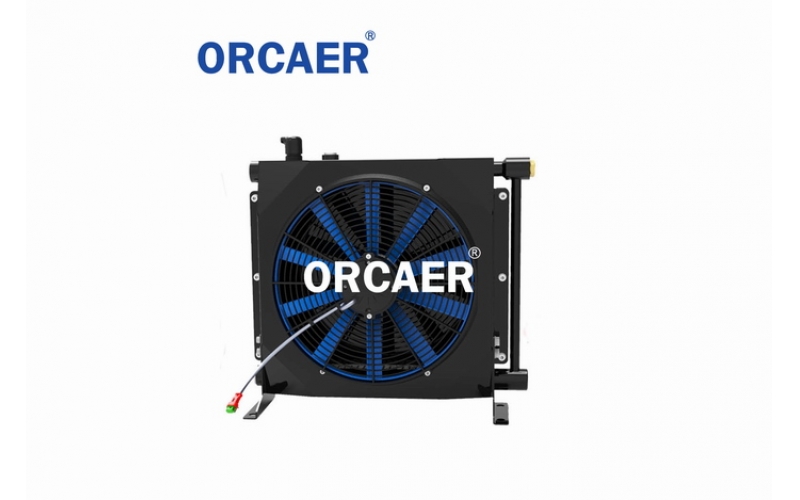

Hydraulic Oil Cooler

PTO Gearbox Oil Cooler is suitable for cooling  PTO Hydraulic Power Pack  and tractor mounted Power Pack  ,effective for remote cooling of hydraulic circuits, or lube oil cooling for gear drives,is a high-performance cooler made of aluminium,Air cooled oil heat exchangers for use where the standard aluminium element type oil coolers

PTO Gearbox Oil Cooler Function:
• The air-oil cooler consists of a fan driven by an electric motor, blowing air through the cooler matrix.
• The cooling pipes are made by extruded aluminium sections. They are flat with narrow short sides to expose a maximum heat-emitting area and to allow low air pressure drop.
• All coolers have a 4 bar(58 psi) by-pass function to limit the oil pressure in the cooler.
• The electric motor is a DC motor.
•Heat transfer range is from 0.25 to 1.4 kW/°C of ETD. Performance is based on ISO 68 hydraulic oil at 30cSt, for other fluids and viscosities

PTO Gearbox Oil Cooler application for  Tractor mounted hydraulic powerpack – top link Cat 2

High performance off-line systems for oil cooling of hydraulics or gear drives in hostile environments. Internal relief valve for protection against over pressure or accident
