Mining oil cooler just uses about The Mining industry for heavy plant, trucks, heavy equipment and processing. Mining oil cooler – maximum cooling capacity 100 kWThe Mining oil cooler with three-phas

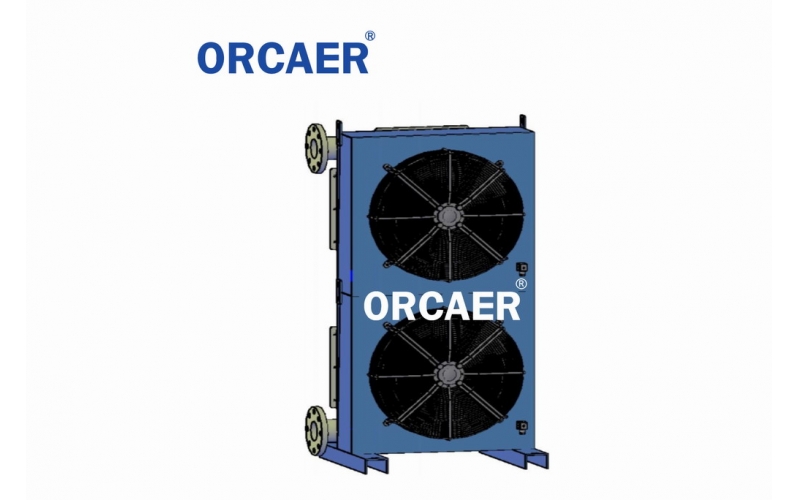

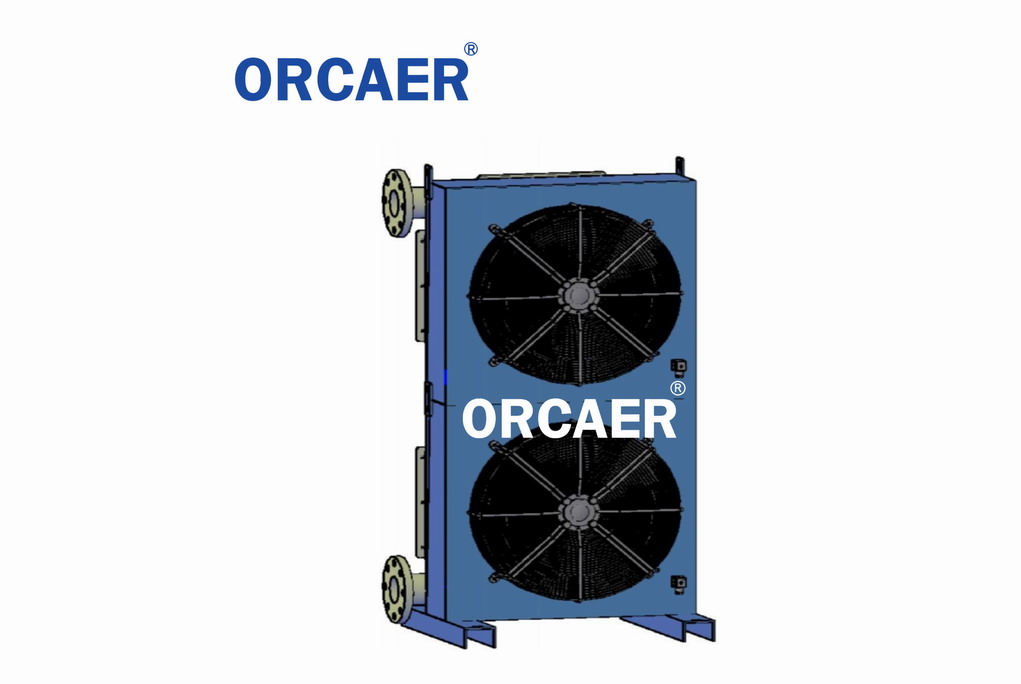

Mining oil cooler just uses about The Mining industry  for heavy plant, trucks, heavy equipment and processing. Mining oil cooler – maximum cooling capacity 100 kW

The Mining oil cooler with three-phase AC motor is optimized for use in the industrial sector. The system is supplied ready for installation. An integrated circulation pump makes it possible to cool and treat the oil in a separate circuit – offline cooling. The cooling system can also be equiped with filter unit. Together with a wide range of accessories, the Mining oil cooler is suitable for installation in most applications and environments. The maximum cooling capacity is 100 kW at ETD 40 °C. The most reliable way to size is with the aid of our calculation program. This program, together with precise evaluations from our experienced, skilled engineers, gives you the opportunity for more cooling per € invested.



ORCAER is designed primarily for synthetic oils, vegetable oils and mineral oil type HL/HLP in accordance with DIN 51524. Maximum oil temperature 100 °C.

  • Maximum negative pressure in the inlet line is 0.4 bar with an oil-fi lled pump. Maximum pressure on the pump’s suction side is 0.5 bar.

  • Maximum working pressure for the pump is 10 bar. For information about suction height, pressure, etc. see the QPM3 pump manual.

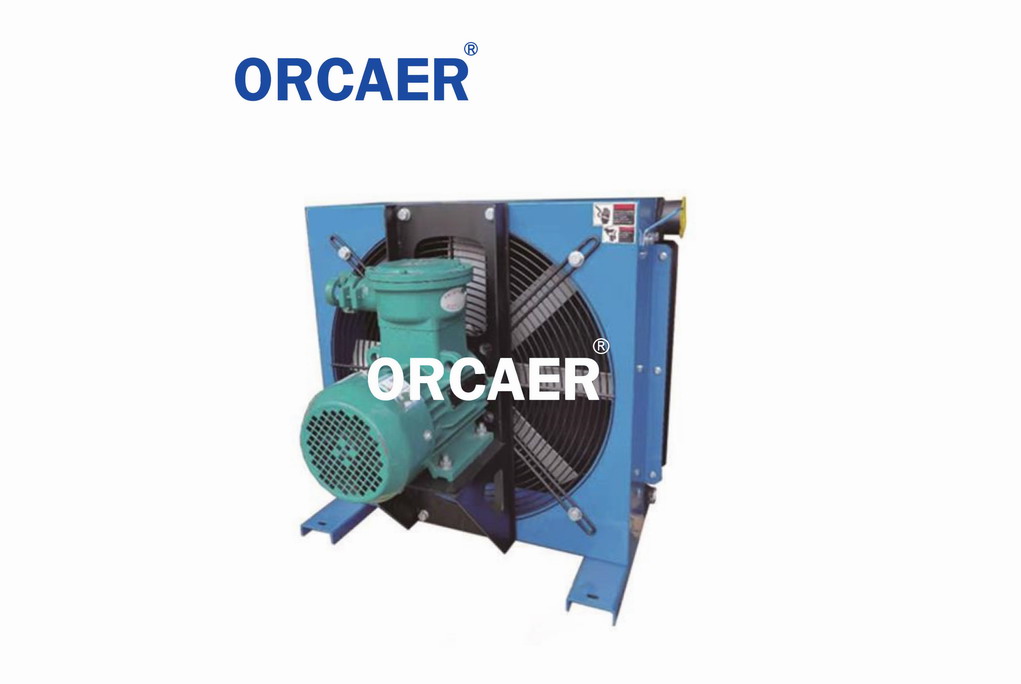

3-PHASE MOTOR,Explosion proof MOTOR Oil cooler

3-phase asynchronous motors in accordance with IEC 60034-1
Nominal voltage *
Insulation class: F
Rise of temperature: B
Protection class ;IP 55
Recommended: -20 °C –
ambient temperature: +40 °C
MATERIAL
Pump housing :Aluminum
Cooler matrix :Aluminum
Fan blades/hub: Glass fi bre,reinforced,polypropylene/,Aluminum
Fan housing Steel
Fan guard :Steel
Other parts: Steel
Surface treatment :Electrostatically powder-coated

Explosion Proof Oil Cooler
