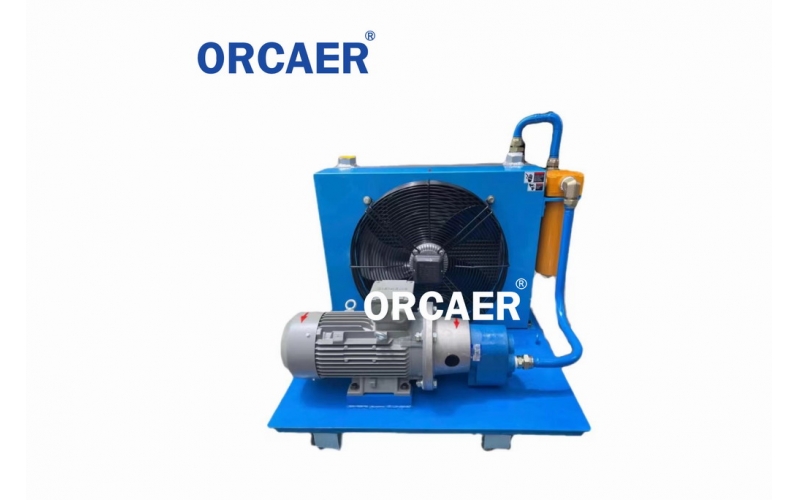

Lubricating Oil Self-Circulating Cooler Air Cooled Oil Cooler with a Oil Pump Independent Circulation Cooling
1)AH /AE SERIES self-circulation hydraulic oil cooler
AH1012 series self-circulation hydraulic oil cooler
AH1470 series self-circulation hydraulic oil cooler
AH1490 series self-circulation hydraulic oil cooler
AE1012 series self-circulation hydraulic oil cooler
AE1470 series self-circulation hydraulic oil cooler
AE1490 series self-circulation hydraulic oil cooler
Flow rate: 10-1000L/min
Pressure less than 20bar
Gear pump flow 15-100L/min
Control mode: 220v, 380v,440V
This series of air-cooled hydraulic oil cooler adopts plate-fin structure, which has the characteristics of compact structure, light weight and high heat exchange efficiency. Compared with traditional or other radiators, the plate-fin structure provides the best heat exchange capacity of each unit, and the cooling effect is better than traditional copper tubes.
2)Silent EVO2 Series Self Circulation Oil Cooler
Air Oil Cooling System with AC-motor and pump provides cooling up to 45kW. Its robust construction makes it suitable for most applications and environments
TECHNICAL INFORMATION:
We are pleased to offer a brand new range of Oil / Air coolers. Integrating compact design, high cooling and low noise. For full technical details please click on the PDF links below.
The Silent EVO 2 Series heat exchangers are designed to connect directly to the hydraulic reservoir. These offline air/oil coolers offer a reduced noise level while utilizing a pump activated by an electric motor to automatically take the oil into circulation through the cooler and then return the oil back into the hydraulic circuit. This is a high efficiency heat exchanger cooling system.
TECHNICAL INFORMATION:
Lift Size up to 1000KG
Product Code: SIL25
SIL25 - SE2 25 SC 400 B02 (7.6 kW)
Lift Size from 1000KG – 2000KG
Product Code: SIL35
SIL35 - SE2 35 SC 400 B02 (11.9 kW)
Lift Size from 2000KG – 3000KG
Product Code: SIL45
SIL45 - SE2 45 SC 400 B02 (17.7 Kw)
All our oil coolers are supplied with the following items: -
1 x Thermostat kit.
6 Meters of R2T Hose to suit motor inlet connection with BSP Fem Connections each end to suit cooler
6 Meters of R2T Hose to suit pump outlet connection with BSP Fem Connections each end to suit.
Pump Suction Adaptor BSP Male/Male.
Matrix Return Adaptor BSP Male/Male
These units are designed to fit adjacent to the oil tank (on the same level). They are not suitable for mounting above or below.
These items are purchased on an individual basis on your behalf so please check the full manufacturers specification to ensure their suitability. Additionally all hoses and pipework are cut specially to your lengths. Because of this we are not able to accept returned items other than for faults covered by the manufacturer’s warranty.
