Mineral cooling Dry cooler for Crypto Mining immersion cooling from Home Mining to Large-scale Mining.
immersion Cooling - Bitcoin Mining
Home Office Mining Oil Immersion Cooling Kit 4.3kW with Dry Cooler For 1 Set S19 Series Overclocking

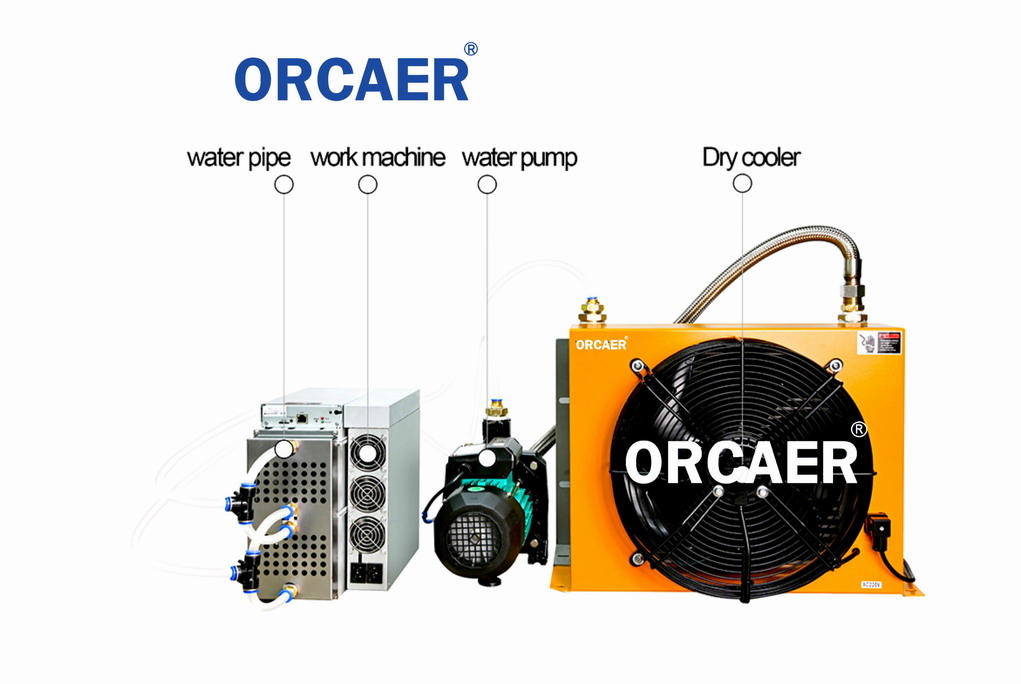

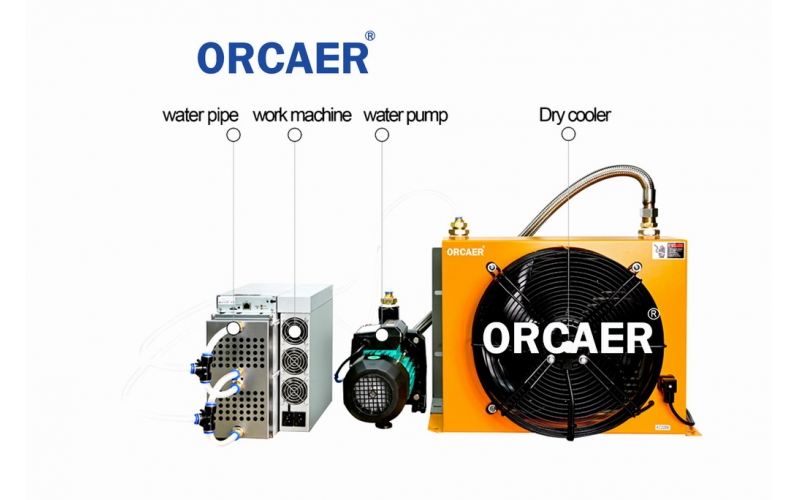

Complete Set for ASIC Liquid Cooling Waterblock System (Water Cooling Plate + Water Pump + Dry Cooler).
Made and customized for amateur to mid-scale mining operations.
These systems supports the customization and overclocking of all types of mining machines of Whatsminer and Antminer.
The heat exchange capacity of the dry cooler varies from 8.8KW, 19KW, and finally 58KW.
Dissipation is suitable for 2-15 mining machines at concurrently.
1. Low noise less than 50dBA more suitable for home mining
2. Overclocking benefits and energy saving Mainstream miners can be overclocked by 20-50%. Better power efficiency compared to air cooling.
3. IoT sensors and smart monitoring IoT sensors help to monitor the running status.
4. Compatible with most ASIC miner models Including BTC, ETH, LTC, KDA, CKB, HNS miners and more.
5. Advanced fluid flow design to achieve precise control of heatLow damage rate due to precise temperature control.Stable running with little maintenance.No static, dust, short circuit, oxidation, or fan vibration .
Product Deatails
1. Tank
Outer size | 410(L)*400(W)*475(H) mm |
Inner size | 320(L)*210(W)*370(H) mm |
Maximum Operating Load | 4.5kW |
Weight | 20kg |
Input voltage | 200-240V 50/60Hz |
Environmental Temperature | -10°C-40°C |
2. Dry Cooler
Size | 570(L)*310(W)*530(H) mm |
Max Capacity | 4300W@30°C |
Weight | 16kg |
Input voltage | 200-240V 50/60Hz |
Power | 180W |
Inlet and outflow temperature | 60/40°C |
Mineral oil cooling for mining
The reason for cooling in computer systems:
Computer systems produce heat with the processes that they perform.
They use the greater capacity of the processor when the process is complicated, and generate higher the amount of heat.
This heat must driven out accuracy, to prevent damage to the system or even circuit fire.
Therefore cooling is one of the important components of computer systems.
Miner devices are used to extract digital currencies.
They generate a lot of heat because they use the most CPU power.
So do not extract currency without having a proper cooling system for the Miner.
There are several ways to cool the miner, depending on the amount of heat generated by the miner:
Wind coolers
Water coolers
Oil coolers
The wind cooling system is a traditional way. Suitable for users who are not professional.
This cooler consists of two parts. One is directly mounted on the processor, called Heatsink, and the other is located at the top of the Heatsink. This cooling is due to the use of several large and small fans, although reduce the heat, but the cost of consuming electricity is high.
The water cooling system is another minor cooling system. This cooling is composed of 3 main parts. Heatsink, which is installed directly on the processor, cooling fan, water pipelines. Cooling fans are located in the tank path or water pipelines that cool the water tank and cool water is directed toward the heatsink, resulting in cooling the processor.
Oil cooling system or mineral oil cooling for mining is the best type of cooling miner used for professional mining. In this cooler is used mineral oil that does not have conductivity. The whole machine can be immersed in the oil and is not concerned about the connection of the device. The benefits of this cooling system include heat transfer, noise reduction and high speed cooling of the machine. This results in greater profitability of digital currency. The system can remain in the mineral oil for more than a year and has no effect on the system hardware.
