Hybrid Heat Exchanger:
Hybrid heat exchanger is composed of Shell and Tube Heat Exchanger,and plate fins alternately superimposed, which are integrated by precision diffusion welding process. Relying on the direct contact of cold and hot fluids for heat transfer, it has the advantages of large flux and small pressure drop
FIN HEAT EXCHANGER-THE EFFECTIVE SOLUTION OF THE TECHNOLOGIES:

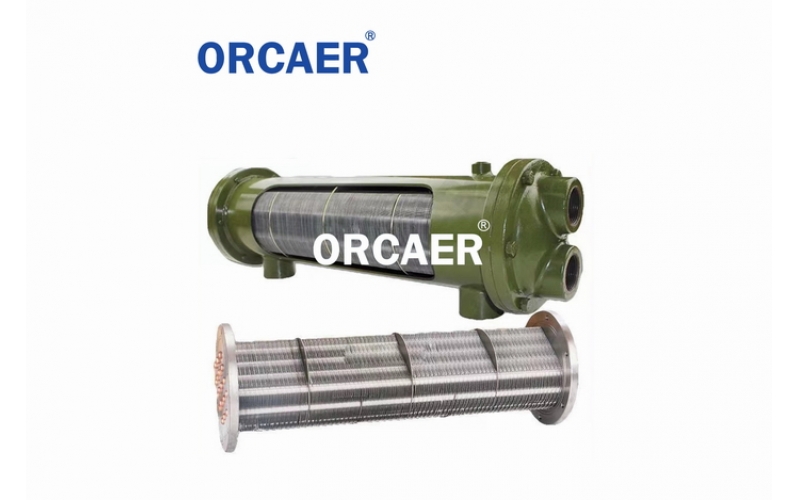

The Hybrid Heat Exchanger produced by COOLPLUS/ORCAER combines the advantages of Shell & Tube- and Plate Heat Exchangers. A larger cooling surface through the hybrid-design and the easy to clean waterside allows us to manufacture heat exchangers in a smaller size with a better cooling capacity.
Features:
Oil side: optimized performance by fin technology
Water side: optimized durability due water tubes
Aluminum fins ensure larger levels of heat exchange
Heat dissipation up to 6,700 HP (5,000 kW)
Oil flow rates of up to 581 gal/min (2,200 l/min)
Removable end caps for easy cleaning of the tubes
Flanges allow the heat exchangers to be turned through 90°
pressure: oil 508 psi (35 bar) / water 145 psi (10 bar)
Oil-side: optimized performance due to fin-technic
Small water tubes
On-tank mounted cooler
Copper, Copper-Nickel, Stainless Steel, Titanium tubes
Optional:
Seawater version
Marine certificates
Offshore approvals
Hydro test
3.1 material certificate
Customized solutions
Welded tubes
Compressed air application
Water-water application
Internal by-pass valve
SAE/ANSI flanges
ORCAER Hydraulics is now able to offer Heat Exchanger:
Shell and Tube Heat Exchanger
Hybrid Heat Exchanger
ASME Heat Exchanger
Double Heat Exchangers
Safety Heat Exchanger
Cooler-Heater Unit
Sea Water Heat Exchanger
In-Tank Heat Exchanger
Bare Tube Heat Exchanger
Stainless Steel Heat Exchanger
Exhaust Gas Recirculation
Gear box oil cooler – in – tank
Contact us for further technical details and configuration options.
