Marine Plate Heat Exchanger

Marine Plate Heat Exchanger:

Marine Plate Heat Exchanger designed for Highly efficient and flexible ,There are two main types of marine heat exchangers: PHE Gasked Plate Heat Exchangers and BRAZED plate heat exchanger. Plate heat exchangers are the best option for seawater environments due to their corrosion resistance, compact size, greater thermal efficiency, and better price

ORCAER’s marine semi-welded plate heat exchangers are available for a broad range of temperatures and media, with operating pressures up to 65 bar. Robustly constructed, they provide exceptional longevity with their resistance to vibrations and pressure cycles. The various sizes, which cover a wide spectrum of heat transfer capacities and flows, are carefully designed and selected to achieve optimal performance. The cooling media/seawater side is fully accessible without disconnecting the semi-welded plate heat exchanger from the pipework.

Feature:

High efficiency that reduces energy consumption and OPEX
Long service life, comparable to the vessel lifetime
Serviceable without hot work, protecting uptime
Easy maintenance on board through CIP or mechanical cleaning
Extendable capacity through the addition of plates

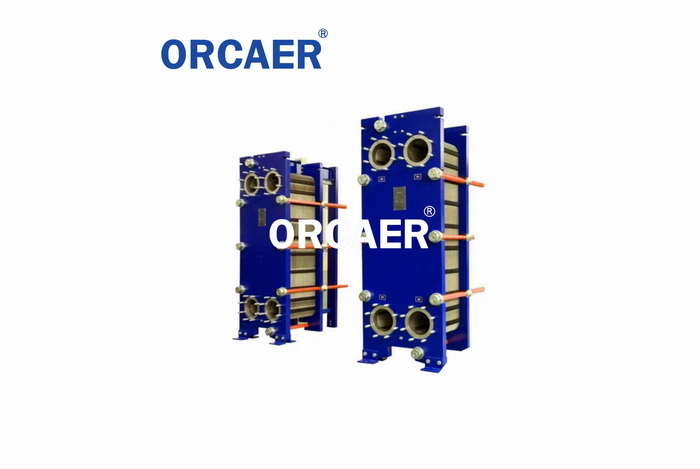

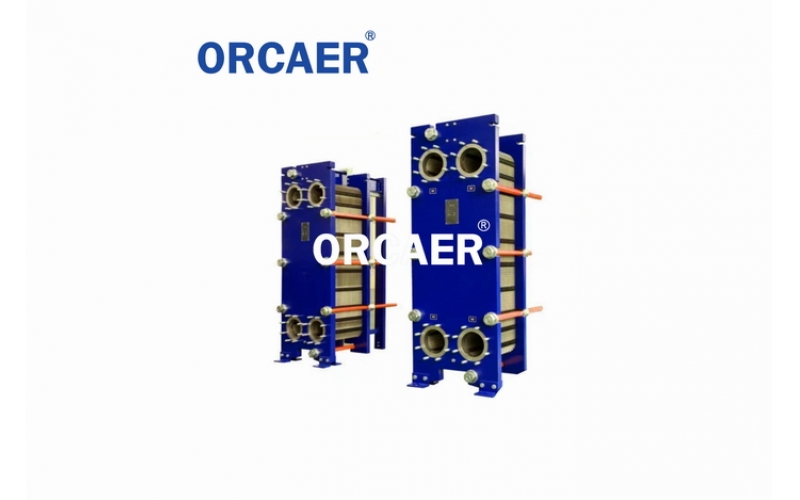

TL – SCREWED PLATE HEAT EXCHANGER(PHE Gasked Plate and Frame Heat Exchangers):

Despite the fact that the screwed plate heat exchanger produce high-pressure loss, they are still found in many applications.

Standard version

Screwed plate heat exchanger
Modular system, thus great flexibility, subsequent adjustment possible by changing number of plates
Easy to clean

Optional

Various plate materials (titan, Hastelloy, etc.)
Module welded plates
Variable depths of stamping
Increased thickness

BRAZED PLATE HEAT EXCHANGER:

Brazed plate heat exchanger are most likely used for small cooling capacities. Because of the low-cost, it is not worthwhile to clean the heat exchanger at all. If it clogs, it will just be replaced.

Standard version
