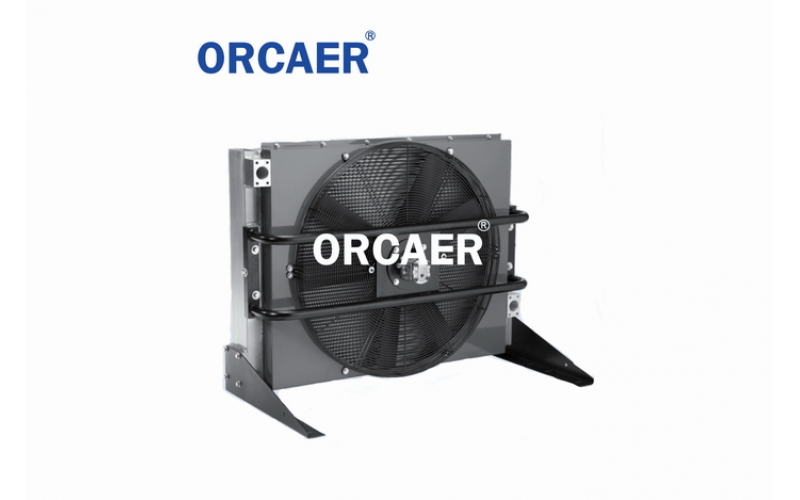

Marine Air Oil Cooler:
Marine Air oil cooler designed for Air cooled environment, brazed aluminum construction,Pre-Engineered, Marine corrosion control coatings available,1 to 80 Horsepower of Cooling Electric and Hydraulic Motor Options
Marine heat exchanger is a device that transfers heat from a boat engine’s coolant to raw water pumped from the water outside the boat. There are two main types of marine heat exchangers: plate and shell and tube. Plate heat exchangers are the best option for seawater environments due to their corrosion resistance, compact size, greater thermal efficiency, and better price
ORCAER/COOLPLUS offer a full range of both standard and custom Water Cooled and Air Cooled marine heat exchangers.
Features:
Bar and Plate Brazed Aluminum Core
Rugged, lightweight, and compact
Provides the best heat transfer per given envelope size while minimizing pressure drop
Air-side fin design minimizes fouling and static pressure ensuring longterm, reliable performance
Welded fittings/ports and manifolds ensure structural integrity
S tandard SAE ports – NPT and BSPP ports available
Customized units are available to meet your specific performance requirements
T-BAR core optional for high viscosity oils or other highly fouling fluids.*See T-Bar Performance Curve
Low Noise Option Available

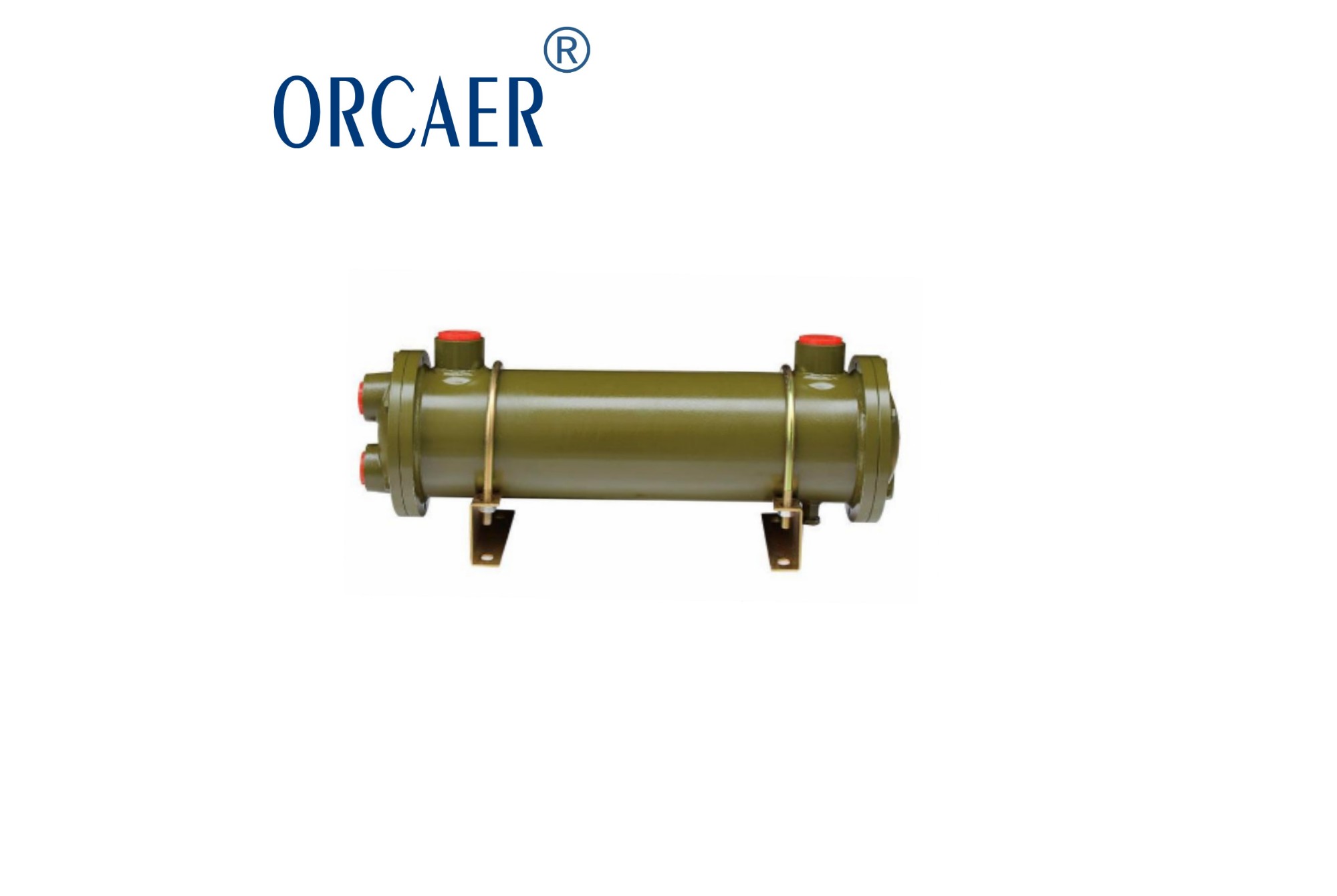

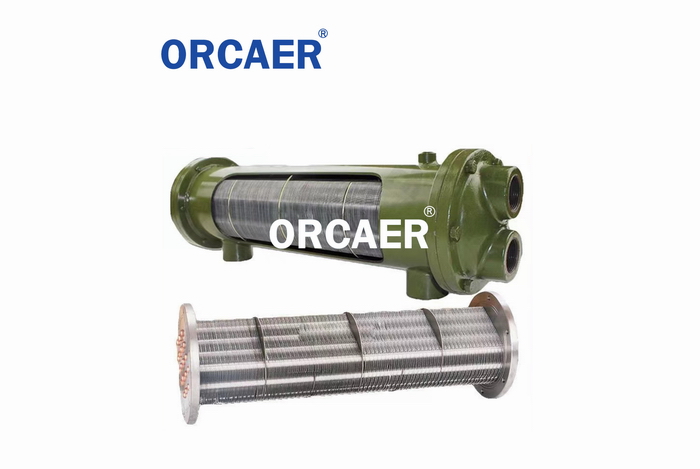

Marine Shell & Tube B Series:-
Pre-Engineered
Sea Water Service Rated
10 to 1250 Horsepower of Cooling
Bonnets: Bronze
Tubesheet: Brass
Tubes: Copper Nickel
Baffles: Brass
Shell: Brass
Hardware: Steel
Marine Plate & Frame:
High Performance
Small Footprint & Lightweight
Easy to Maintian
Marine Air Coolers:
Pre-Engineered
Marine corrosion control coatings available
1 to 80 Horsepower of Cooling
Electric and Hydraulic Motor Options
Marine Cooling Coils:
Custom Engineered
Materials for Marine Service
manufactured to Mil-Spec Requirements

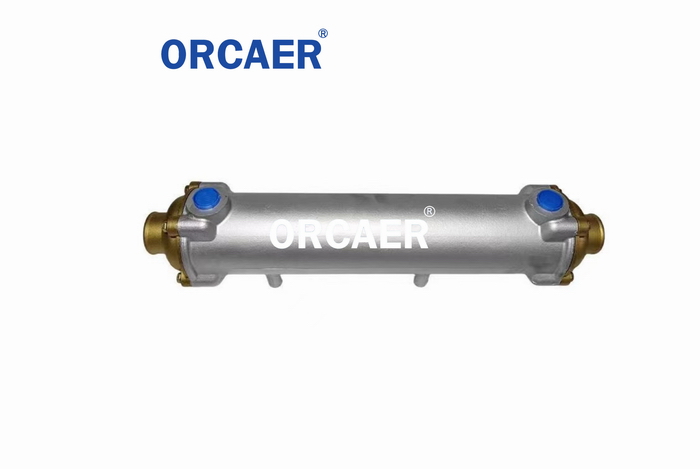

Marine Shell & Tube HC Series:
Pre-Engineered
Sea Water Service Rated
10 to 1250 Horsepower of Cooling
Bonnets: Bronze
Tubesheet: Copper Nickel
Tubes: Copper Nickel
Baffles: Brass
Shell: Steel
Hardware: Steel
Applications:
Jacket Water Cooling
Engine Oil Cooling
Gear Coolers
Marine Cranes & Lifts
Marine Generator Cooling
Fresh Water Recirculation Loop Cooling
Transmission Cooling
Hydraulic Oil Coolers
Ventalation Coolers and Heaters
ORCAER Hydraulics is now able to offer Heat Exchanger:
Shell and Tube Heat Exchanger
Hybrid Heat Exchanger
ASME Heat Exchanger
Double Heat Exchangers
Safety Heat Exchanger
Cooler-Heater Unit
Sea Water Heat Exchanger
In-Tank Heat Exchanger
Bare Tube Heat Exchanger
Stainless Steel Heat Exchanger
Exhaust Gas Recirculation
Gear box oil cooler – in – tank
Contact us for further technical details and configuration options.
